Keysight-Conduant Partnership
A Strategic Alliance for Integrating Data Streaming Storage into Keysight Solutions
StreamStor® Cobra Solutions
If your customers need precision high-speed ADC and DAC solutions with long duration data capture, the Conduant/Keysight partnership brings the most advanced high-speed digital recording and playback solutions to these applications. By leveraging ODI, a non-proprietary optical data transfer protocol, Keysight ADC and DAC products can now be combined with the Conduant StreamStor® Cobra recording solution for long duration recording or playback of digitized sensor data. The ODI protocol is easily implemented in FPGA hardware, including AMD and Intel products, and enables real time streaming of the most demanding signals from RF or other sources for analysis and measurement. Whether your application requires real-time processing, playback, waveform simulation or long duration capture, the ODI protocol and Keysight/Conduant solutions provide the needed bandwidth for the most difficult applications.
StreamStor® Cobra Recording Systems
- Real-Time Digital Recording/Playback:
The Cobra recording systems integrate with Keysight digitizers and waveform generators to capture, store, and reproduce high-speed data accurately. - Modular:
By using the PXI Express platform, including Keysight controllers and chassis, the recorders can be configured to meet various application requirements such as extended storage or differing performance levels. - Consulting:
We offer tailored consulting to help design and implement recording solutions that fit your project’s unique requirements. The Cobra system provides the scalability and flexibility to meet a variety of bandwidth and capacity demands.
StreamStor® integrates seamlessly with ODI equipped Keysight instruments
Conduant’s 160 Gbps (20 GB/s) ODI recorder breaks new barriers in high-speed data recording, offering innovative solutions for the most demanding applications.
Conduant's FPGA boards with dual ODI ports provides support for user defined signal processing.
Enhancing Keysight’s Cutting-Edge Products with Conduant Expertise

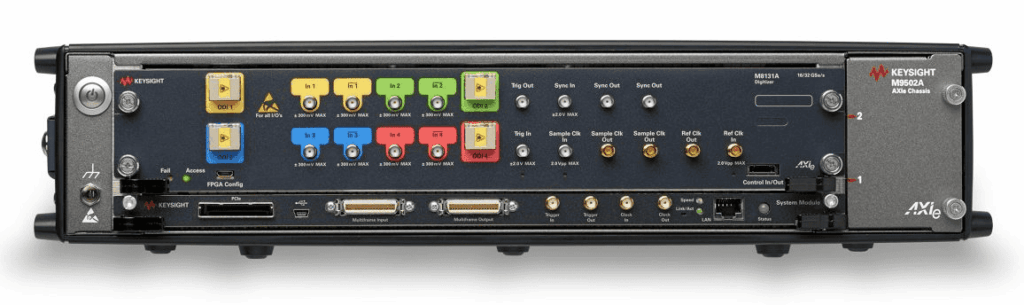

Keysight M8131A 32 GSa/s Digitizer
SUPPORT PROVIDED: Streaming storage captures data over extended durations, enabling accurate analysis of digitized signals.

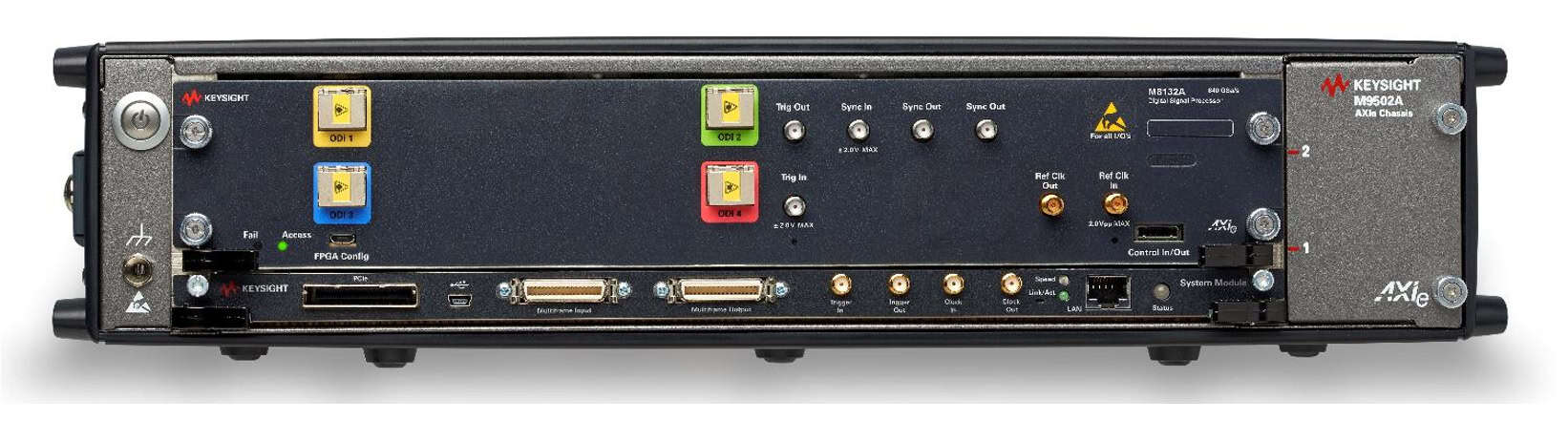

Keysight M8131A 32 GSa/s Digitizer
SUPPORT PROVIDED: Seamless capture or playback of digital data streams for digital signal processing applications.
Keysight M8121A 12 GSa/s Arbitrary Waveform Generator
SUPPORT PROVIDED: Playback of recorded or fabricated data for precise reproduction of wide bandwidth signals.
Keysight N9042B UXA Signal Analyzer
SUPPORT PROVIDED: Streaming storage capture of extended duration IQ data, enabling offline analysis of wide bandwidth signals.
Keysight N9484C VXG Vector Signal Generator
SUPPORT PROVIDED: Playback of extended duration recorded or fabricated analog waveforms.
System Design and Configuration
In addition to these products, Conduant engineers can collaborate directly with your Keysight team and your customers on system design, configuration and even custom features, to provide the capabilities to meet the requirements of your customer projects. See our configuration guide for more details on recorder features and possible configurations to meet your requirements. Feel free to reach out using the button below or at the top of the page to arrange a meeting with Conduant engineers to discuss your project.
PXI Express Modular Instruments - Storage and FPGA Boards
In addition to the StreamStor Cobra recording systems, Conduant offers a lineup of PXI Express modules to provide additional storage or FPGA processing capability to Keysight PXI Express modular instrument systems.
PXIE-DM-4M.2
This PXI Express storage module provides four NVME M.2 solid state storage drives in a single PXIe slot. Available in multiple capacities and using either enterprise or consumer grade NVME devices depending on user requirements.
PXIE-DM-U.2
This PXI Express storage module provides a single slot, front panel removable, U.2 NVME solid state drive in capacities up to 15.2 Terabytes.
PXIE-DM-U.2F
This PXI Express module is a single slot U.2 NVME storage drive. Drives are available in various capacities up to 60 Terabytes.
PXIE-HSS8324-DSP
This single slot PXI Express FPGA module incorporates an AMD (Xilinx) Kintex Ultrascale XCKU115 FPGA along with a DRAM buffer, SRAM memory and 24 lanes of optical. The board package includes a dual port ODI implementation supporting full performance ODI connections to Keysight instruments.
PXIE-HSS8316-DSP-QSFP
This PXI Express board incorporates an AMD (Xilinx) Kintex Ultrascale XCKU115 FPGA with a DRAM buffer, SRAM memory and 16 lanes of high speed serial in four QSFP ports. Both copper and optical cabling options are available for the QSFP ports.
PCIE-HSS8324-DSP
This PCI Express board incorporates an AMD (Xilinx) Kintex Ultrascale FPGA with DRAM buffer, SRAM memory and 24 lanes of Optical high speed serial. The board package includes a dual port ODI implementation supporting full performance ODI to Keysight instruments.
