Keysight + Conduant Partnership
Turn Keysight RF Capture into Hours of Lossless Recording & Replay
Conduant’s StreamStor® Cobra systems, co-engineered with Keysight via the Optical Data Interface (ODI), extend Keysight digitizers, analyzers, DSPs, and generators to capture and replay up to 160 Gbps of data without dropped samples.
Capture minutes to hours of gap-free data at full sample rate instead of seconds or fractions of seconds using internal memory.
Eliminate PCIe bottlenecks with up to 160 Gbps optical streaming directly from Keysight instruments.
Replay identical scenarios for faster debug, regression testing, and system validation.
WHY KEYSIGHT + CONDUANT?
Together, Keysight and Conduant give engineering teams the ability to capture, store, and replay more high-speed data than instrument memory alone will allow.
Record minutes to hours of continuous data at full sample rate, instead of only seconds from on-board memory.
Use the Optical Data Interface (ODI) to stream data directly from Keysight instruments into Conduant recorders with no PCIe bottlenecks or dropped samples.
Our joint solutions are validated with Keysight and deployed in demanding aerospace, defense, and wireless test programs worldwide.
Featured Keysight + Conduant Integrations
See how Conduant extends leading Keysight instruments for long-duration recording and scenario replay.

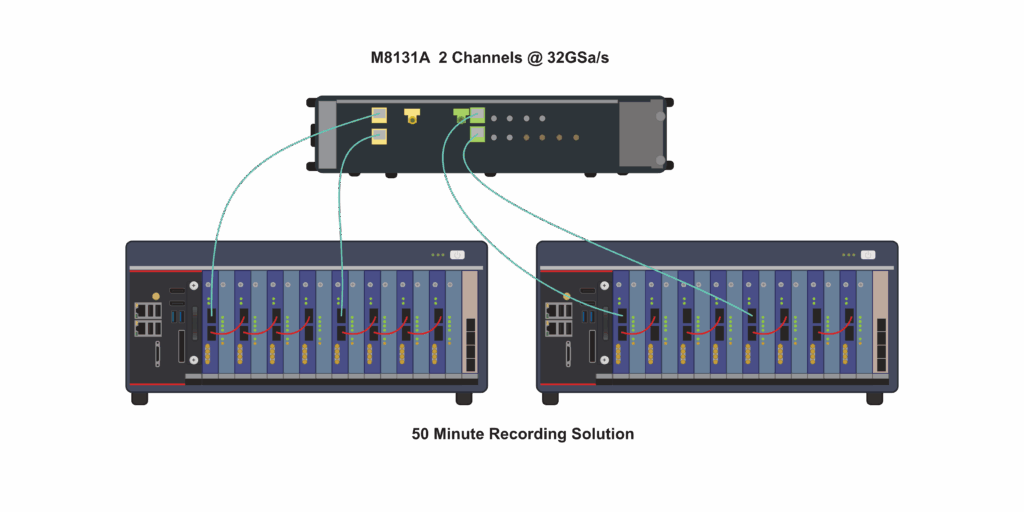

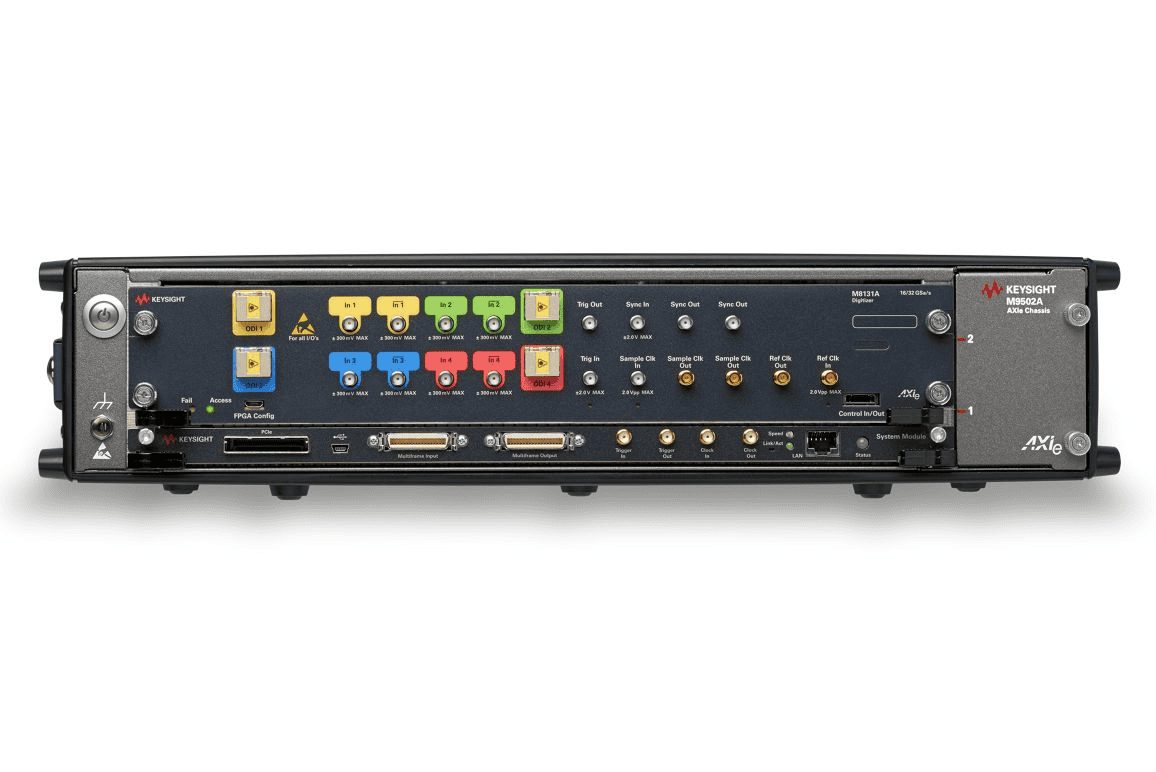

Keysight M8131A 32 GSa/s Digitizer + StreamStor® Cobra
- Turn seconds of on-board capture into 50+ minutes of continuous 32 GSa/s recording.
- No dropped samples with up to 160 Gbps ODI streaming directly to disk.
- Instant replay of full-rate RF data for offline debug, waveform reconstruction, and validation.

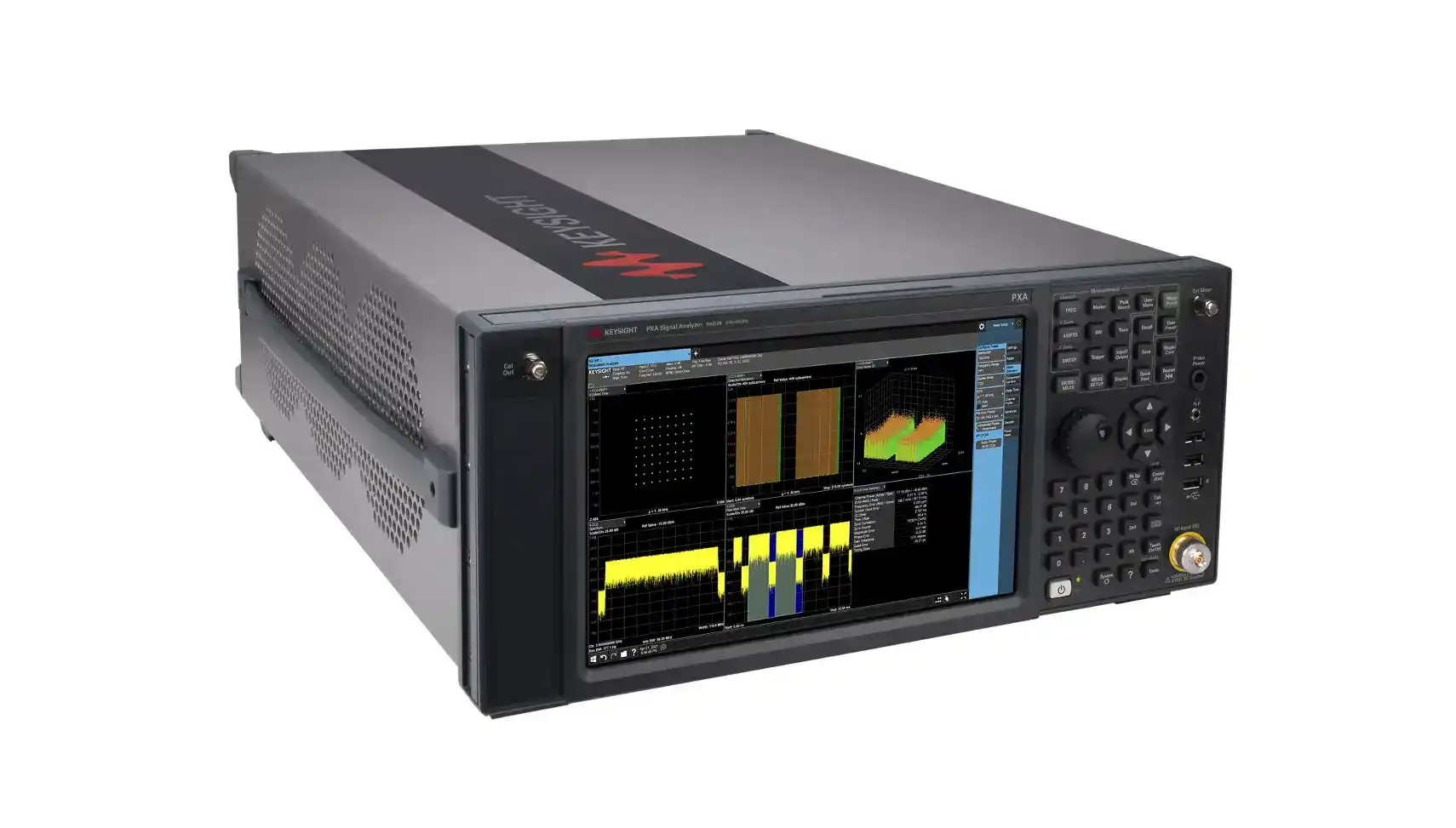

Keysight N9042B UXA Signal Analyzer + StreamStor® Cobra
- Gap-free I/Q streaming at up to 2 GHz bandwidth for long-duration RF capture.
- Record hours of real-world RF environments for offline demodulation and analysis.
- Easily replay captured scenarios to accelerate interference hunting and regression testing.

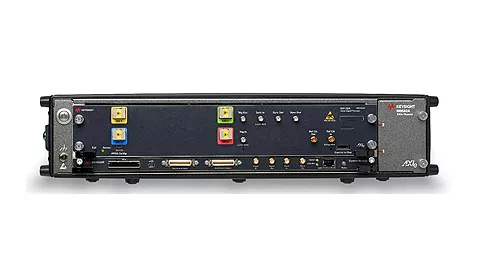

Keysight M8132A 640 Gb/s Digital Signal Processor + StreamStor® Cobra
- Stream up to 640 Gb/s between the DSP and recorder for closed-loop record–process–replay workflows.
- Log and replay identical bit patterns for deterministic, repeatable algorithm and hardware validation.
- Ideal for DSP, MIMO, and beamforming development.

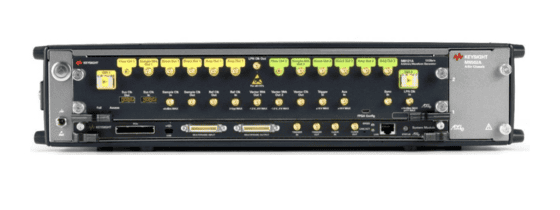

Keysight M8121A 12 GSa/s Arbitrary Waveform Generator + StreamStor® Cobra
- Build an “infinite” waveform library that is no longer limited by AWG on-board memory.
- Replay captured field signals or synthesized waveforms at full 12 GSa/s with gap-free streaming.
- Stress-test receivers with complex, realistic interference and multipath scenarios.

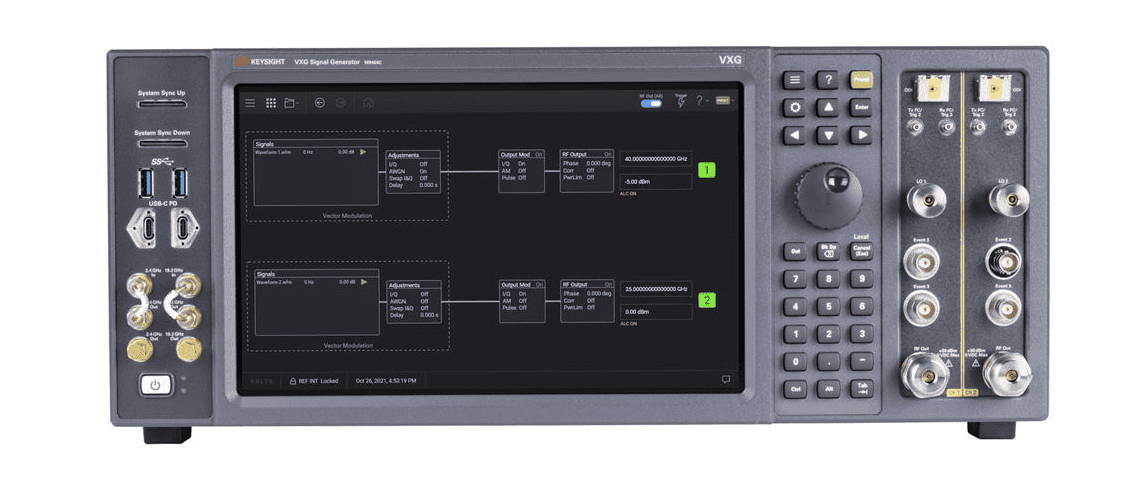

Keysight M9484C VXG Vector Signal Generator + StreamStor® Cobra
- Generate multi-channel RF environments from large waveform libraries stored on Cobra.
- Emulate realistic 5G/6G, satcom, radar, and EW scenarios—not just static test tones.
- Scale from benchtop setups to complex OTA and digital-twin testbeds.
Don’t See Your Keysight Instrument Listed?
- We support additional Keysight digitizers, analyzers, DSP modules, and generators beyond those shown here.
- Our engineers can recommend a custom StreamStor® Cobra configuration for your specific setup and bandwidth needs.
- Share your Keysight models and test goals, and we’ll design a recording solution around them.
Engineering Deep Dive: ODI-Based High-Speed Recording Architecture
Conduant Corporation and Keysight Technologies have formed a strategic partnership to bring the most advanced high-speed digital recording and playback solutions to market. If you are seeking precision high-speed ADC or DAC solutions, our partnership and expertise help ensure that your most demanding projects succeed.
By leveraging ODI (Optical Data Interface)—a non-proprietary optical data transfer protocol—Keysight ADC and DAC products can be combined with the Conduant StreamStor® Cobra recording solution for long-duration recording or playback of digitized sensor data. ODI is easily implemented in FPGA hardware, including AMD and Intel devices, and enables real-time streaming of the most demanding RF and high-speed digital signals for analysis and measurement.
ODI is a high-speed interface standard designed for advanced instrumentation and embedded systems, facilitating optical communication between devices over pluggable optical cables. With speeds up to 160 Gbps per fiber, ODI addresses challenging applications in 5G communications, aerospace and defense, and high-speed data acquisition. It works seamlessly across various product formats—including AXIe, PXI, LXI, VPX, and traditional bench instruments—enabling efficient communication between instruments, processors, and storage devices.
Learn more about ODI standards at the AXIe standards website »
ODI data path: high-speed optical links connect Keysight instruments to StreamStor® Cobra recorders for real-time streaming, long-duration storage, and offline replay.
Building on this foundation, our collaboration with Keysight delivers comprehensive, high-performance recording solutions that meet the unique needs of both engineers and end customers:
-
Real-Time Digital Recording and Playback Systems
Conduant systems integrate with Keysight digitizers and waveform generators to capture, store, and reproduce high-speed data accurately—critical in environments demanding precision and repeatability. -
FPGA Processing
Conduant FPGA boards add processing with integrated ODI ports to allow real-time processing of digitized data. These FPGA boards provide the processing power needed for waveform analysis and other applications requiring high-speed data calculations. -
Custom Consulting Services
We offer tailored consulting to help design and implement recording solutions that fit your project’s specific requirements. The StreamStor® Cobra system provides the scalability and flexibility to meet a wide range of bandwidth and capacity demands. -
Systems Development
From concept to deployment, Conduant collaborates with customers to develop systems optimized for data-intensive applications, focusing on scalability, flexibility, and ease of integration.
Conduant’s 160 Gbps (20 GB/s) optical recorder breaks new barriers in high-speed data recording, offering innovative solutions for the most demanding applications.
Learn more about this technology and its real-world impact »
Technical deep dive: ODI data path and 160 Gbps recorder topology
Questions?
Talk with a Conduant Integration Engineer
Share your Keysight instruments, target bandwidth, and test goals, and our engineers will recommend a recording configuration tailored to your requirements.
Schedule an Engineering Consultation >
