Conventional digitizers have a certain amount of built-in acquisition memory that allows the user to capture real-world signals for a certain, limited amount of time. Once the data has been captured, there is a dead-time during which the data is processed. But no matter how large the acquisition memory of a digitizer is, it is a finite resource and eventually data acquisition stops. The M8131A offers – in addition to its internal acquisition memory – the optical streaming interface (ODI), that allows gapless capture for a seemingly unlimited amount of time. Depending on the configuration, the M8131A can either stream the “raw” digitized samples or down-converted I/Q samples (VITA 49) over the optical data interface.

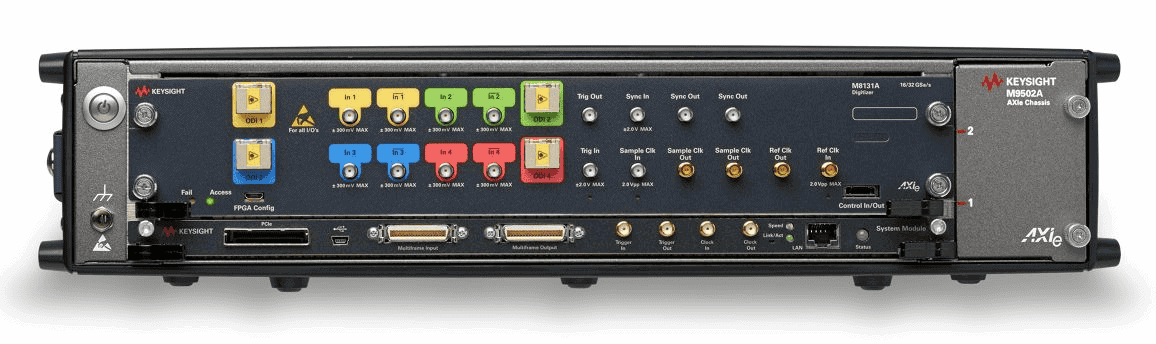

The Keysight M8131A delivers unmatched digitizing performance for 4 channels at 16 GS/s or 2 channels at 32 GS/s with 10 bit sampling...but without an ultra-high-speed, sustained storage solution, you can’t capture its full potential. That’s where the Conduant StreamStor® recording system comes in, providing a tested, reliable solution to capture these high speed data streams over long duration test cycles.
ODI: Breaking Speed and Distance barriers
ODI (Optical Data Interface) is a high-speed interface standard designed for advanced instrumentation and embedded systems, facilitating optical communication between devices over pluggable optical cables. With speeds up to 160 Gbps on each fiber cable, ODI addresses challenging applications in 5G communications, aerospace, and high-speed data acquisition. It works seamlessly across various product formats, including AXIe, PXI, LXI, VPX, and traditional bench instruments, enabling efficient communication between instruments, processors, and storage devices.
Conduant + Keysight: The Industry Standard for High-Speed Recording of Digitized Signals
Keysight and Conduant partnered to develop the preeminent solution for long duration capture of high speed digitized data streams. The StreamStor® Cobra systems are the officially supported Keysight recording solutions for M8131A users. Whether you're in aerospace, defense, or research, our fully integrated ODI recorders give you the capacity and sustained performance required for mission-critical data capture at up to 32 GS/s per channel. Purpose-Built Storage to Match the Performance of the Keysight M8131A Digitizer
Support Provided: Conduant’s high-speed recording solutions capture the M8131A ODI data streams over extended durations, enabling accurate analysis of digitized signals.
The StreamStor® Cobra recording system is available in standard and customized configurations to support M8131A applications requiring capture durations from seconds to hours of duration. Conduant developed an ODI specific implementation that combines the capability of multiple Cobra recording elements to aggregate their performance and support the 320 Gbps (20 GB/s) output rate from an M8131A channel. Our recorders are optimized to receive and store 10-bit data streams at up to 40 GB/s per channel—continuously and without loss. Whether you're capturing a 50-minute burst or a 10-hour test, the system ensures every bit is recorded and ready for detailed analysis.

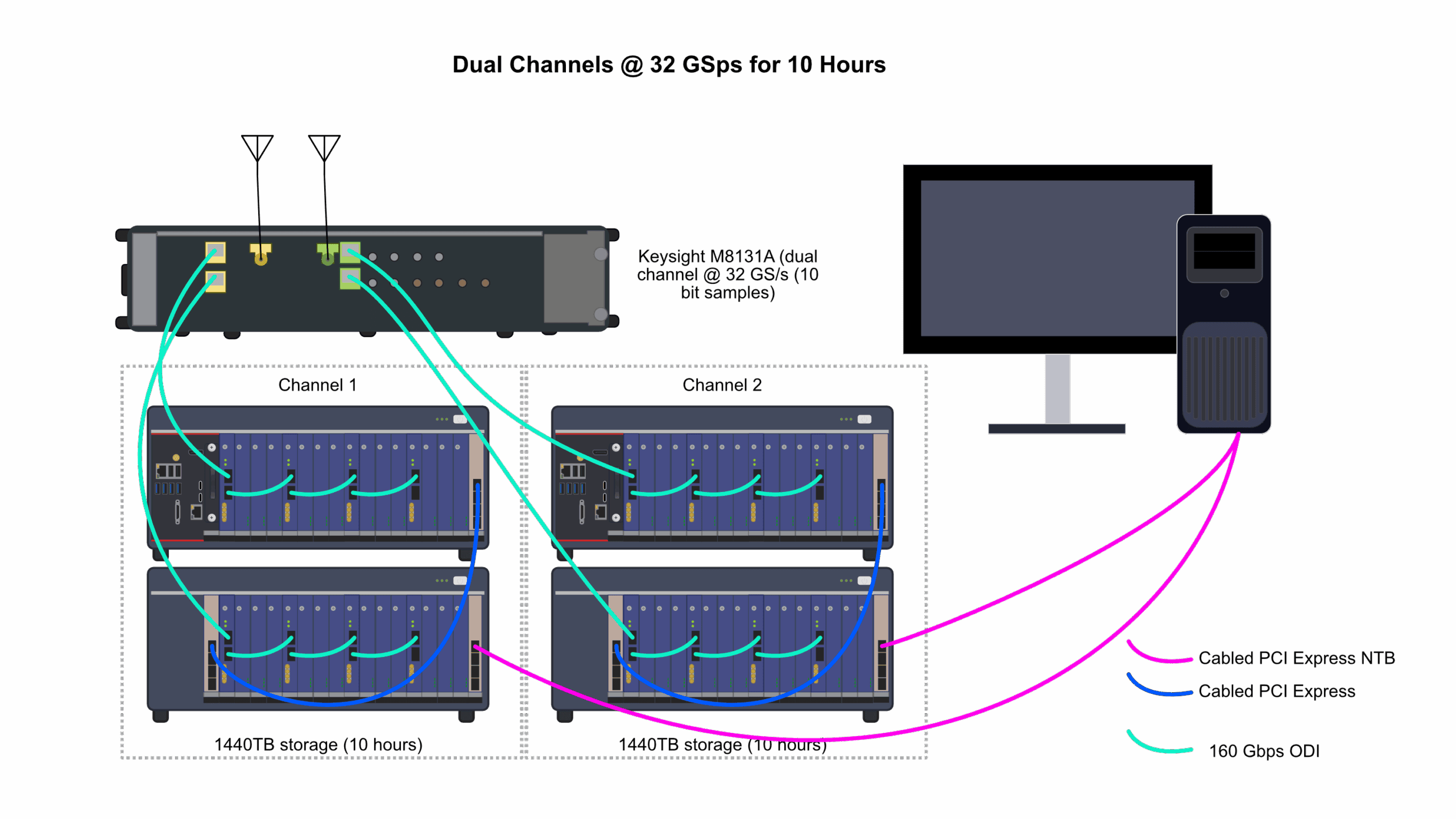

System Overview: Dual-Channel M8131A @ 32 GS/s for 10 hours
Up to 10 hours of Continuous Recording at 32 GS/s per Channel
- 2x Channels at 32 GS/s, 10-bit sampling
- 2880 TB total capacity (1440 TB per channel)
- Supports 4x 160 Gbps Optical Data Interface (ODI) inputs
- Data playback and analysis via cabled PCIe NTB or 10 Gb Ethernet

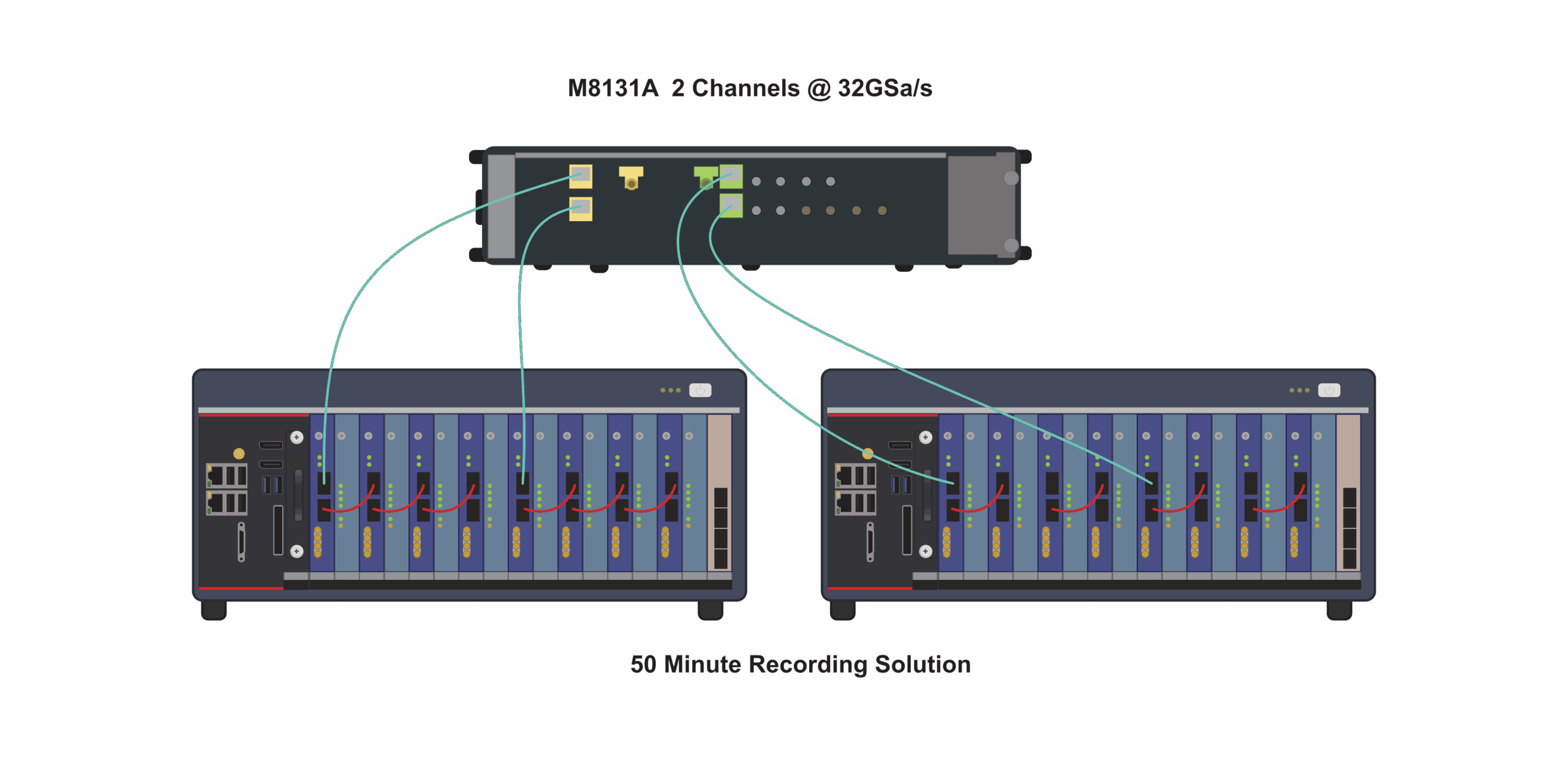

System Overview: Dual-Channel M8131A @ 32 GS/s for 50 minutes
Up to 50 minutes of Continuous Recording at 32 GS/s per Channel
- 2x Channels at 32 GS/s, 10-bit sampling
- 240 TB total capacity (120 TB per channel)
- Supports 4x 160 Gbps Optical Data Interface (ODI)
- Data playback and analysis via cabled PCIe NTB or 10Gb Ethernet
No other platform offers this level of continuous, high-speed ADC capture
Whether your test requires a quick burst capture or extended 10-hour sessions, a Keysight M8131A digitizer + Cobra recording system can be configured for your mission profile. Each configuration maintains full bandwidth and sustained data integrity at up to 320 Gbps per channel. Cobra systems also support VITA-49 packet recording when the M8131A is used in Digital Down Conversion (DDC) modes.
Technical Specs Snapshot
Engineered for Performance
- ODI sustained speed up to 160 Gbps per optical link
- Storage capacity to support minutes to hours of duration
- Cabled non-transparent PCIe bridge available for fast download
- Windows / Linux OS customer workstation support
- VITA-49 packet format support
Tailored High-Speed Recording Solutions
Our collaboration with Keysight delivers comprehensive, high-performance solutions that meet the unique needs of both engineers and customers.
- Real-Time Digital Recording Systems:
Conduant’s systems integrate with Keysight digitizers and waveform generators to capture, store, and reproduce high-speed data accurately—critical in environments demanding precision. - FPGA Processing:
Conduant FPGA boards add processing with integrated ODI ports to allow real-time processing of digitized data. The FPGA boards provide the processing power needed for waveform analysis or other applications requiring high speed data calculations. - Custom Consulting Services:
We offer tailored consulting to help design and implement recording solutions that fit your project’s unique requirements. The Conduant StreamStor® Cobra system provides the scalability and flexibility to meet a variety of bandwidth and capacity demands. - Systems Development:
From concept to deployment, Conduant collaborates with customers to develop systems optimized for data-intensive applications, focusing on scalability, flexibility, and ease of integration.
Conduant’s ODI solutions also support playback to allow reproduction of signals using the Keysight M8121A Arbitrary Waveform Generator. Learn more about this technology and its real-world impact here.
Questions?
Why Work with Conduant?
More Than Hardware. Real Engineering Expertise.
- 25+ years of experience in high-speed streaming storage solutions
- Trusted Keysight Solutions Partner
- Full support and integration
- Customizable to fit your exact technical requirements
If you are looking for a high-performance data recording system, contact us to learn how Conduant can support your project.
